Creating your own Google App

Out of the box, Fusebit's Google Integration uses our own demonstration application in Google. This is only done to make it easier for you to get started, however you will need to register your own Google App for use in Production.

Google also requires a fairly extensive review process before publishing an application. Choose your scopes wisely, to simplify the process of publishing your app.

  1. Go to https://console.cloud.google.com/ and create an account, if necessary.

  2. Create a new project using the project drop-down in the top left:

Select the New Project option in the dialog:

Fill in the dialog window with the name of your project, and click Create.

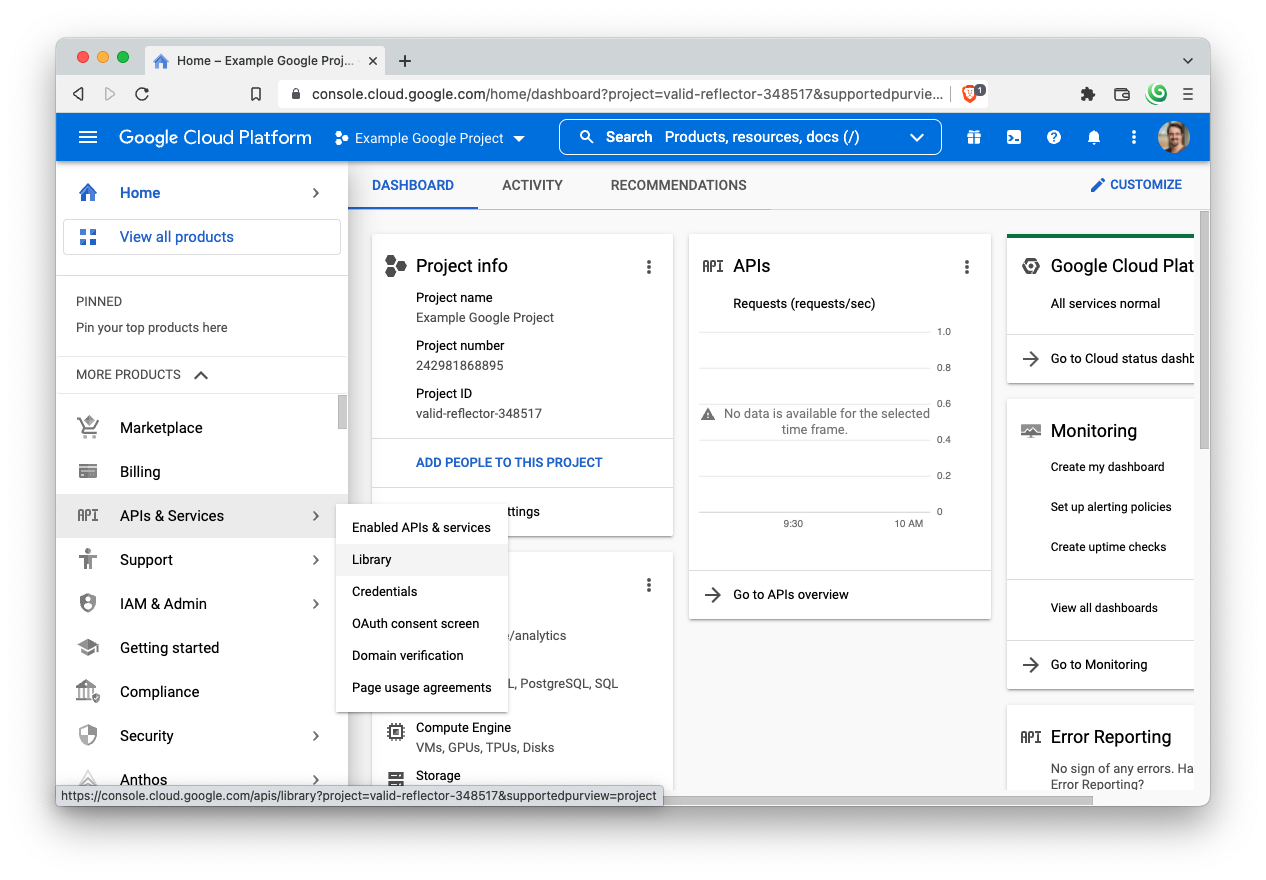

  1. Select the project, and choose the Library option from the API & Services side bar:
  1. Then enter 'Drive' in the search window, and select the Google Drive API option, and click 'Enable':
  1. Select the OAuth consent screen from the left menu:
  1. Select Internal for this app. You can change this as the application gets further developed or is ready to be deployed.

  2. Fill in the name of the application, your email, and the required developer support email at the bottom. Leave the rest of the fields, including the App domain, empty for now.

  3. In the scopes screen, select the Add or Remove Scopes option:

and then enter drive.readonly into the search window.

  1. Select the https://www.googleapis.com/auth/drive.readonly option and then enable it by clicking the check box associated with the item.

Click the Update button at the bottom to commit the change. Then click Save and Continue at the bottom of the Scopes page.

  1. Click Back to Dashboard, then select the Credentials bar on the left:

Select Create Credentials option, followed by the OAuth Client Id option.

  1. Select Web application as the application type, and enter in a name:

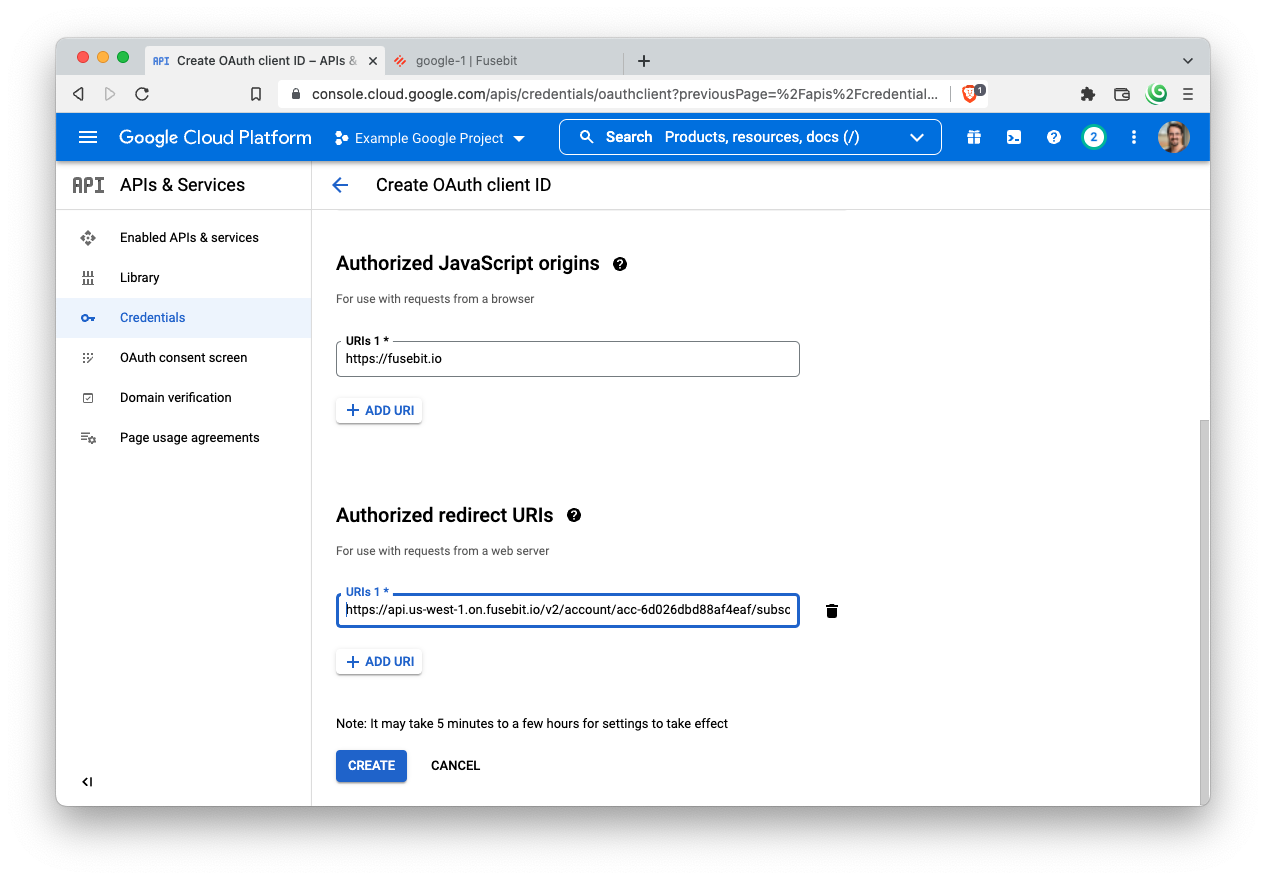

  1. Add your root domain to the list of Authorized JavaScript Origins.

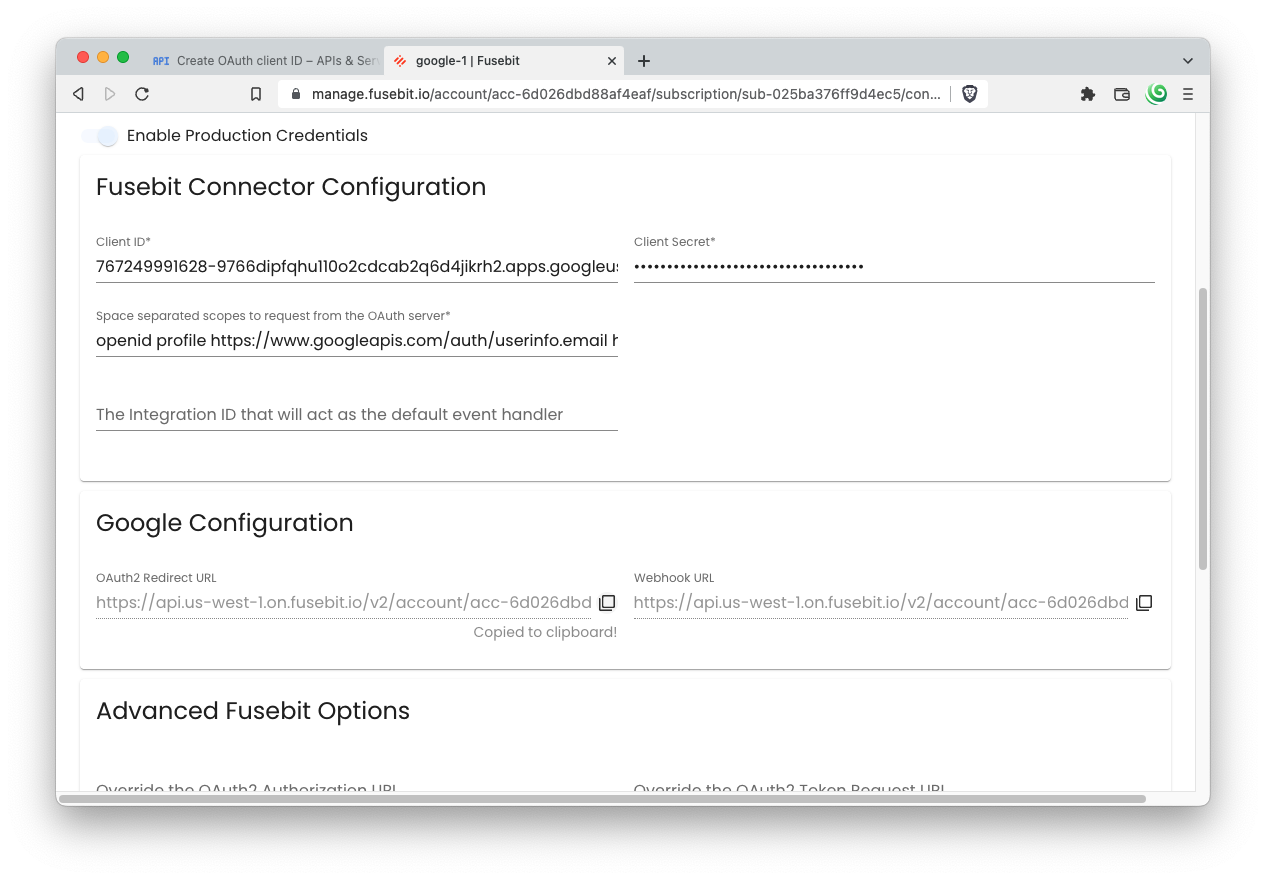

  2. In a new tab, open the Fusebit management portal and select the Google connector that was created (or create a new one). Click the Enable production credentials toggle, and then copy the OAuth2 Redirect URL using the icon on the right:

Add that value to your Authorized redirect URI list in the Google App configuration window.

🚧

Google's App Restrictions

In the future, when you look at publishing your App so that your customers can make use of it directly, Google will require a fairly invasive and intensive review process. One of the requirements at that point is that you're able to demonstrate ownership of the domain to which you are redirecting users, in addition to your root domain.

Traditionally, this is solved by adding a 302 Redirect endpoint on your backend that is hardcoded to redirect the user to a specific Fusebit OAuth2 Redirect URL. Since Google is the only service that requires this particular action, it's fairly straightforward to add an endpoint.

Click the Create button at the bottom.

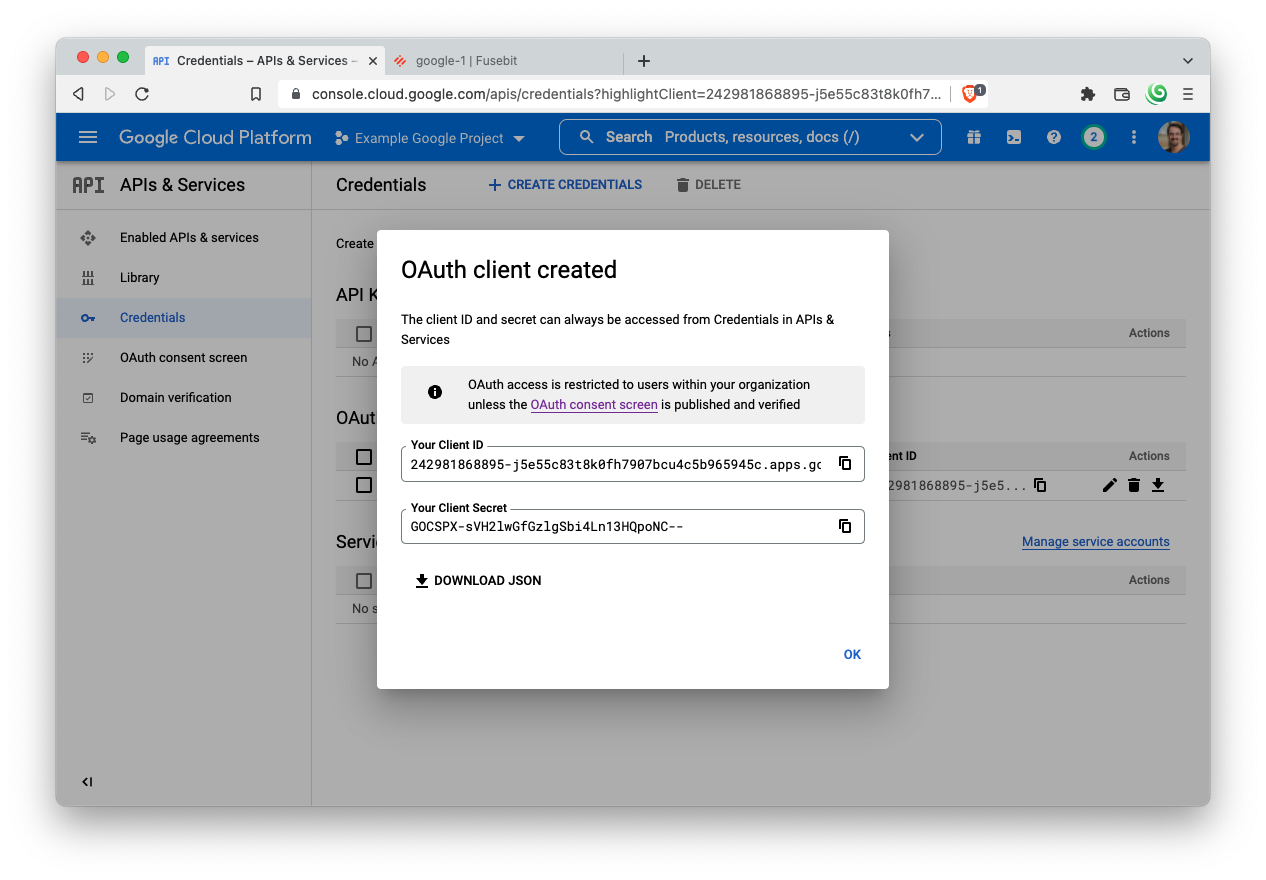

  1. Copy the Client ID and Client Secret into the Fusebit Google Connector configuration, from this dialog:

Into this configuration panel:

  1. Add the desired https://www.googleapis.com/auth/drive.readonly scope to the list of scopes in the Fusebit configuration:
  1. Save the Fusebit Connector Configuration

At this point, you should be able to use the new connector with your integration!
